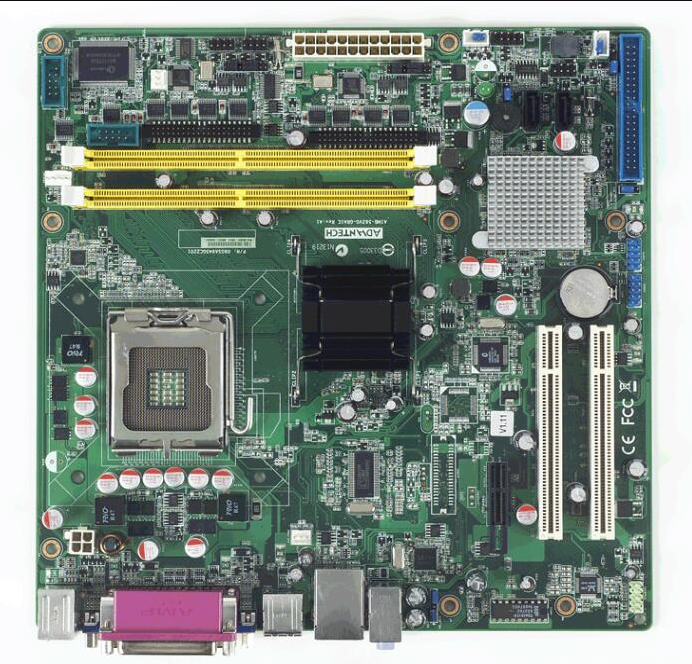

研華AIMB-562L
2018-11-26 11:35:22 來自:system
Main Features
Intel 945G/945GC 芯片組支持533/800/1066 MHz FSB
DDR2 533/667雙通道內存，支持最高4 GB
支持雙VGA口 和24位LVDS面板，板載雙通道3 W 放大器
支持10 個串口, 8 USB, 16位GPIO, TPM 1.2（選購品）
支持嵌入式軟件API和Utlity
產品介紹
LGA 775 酷睿 2 MicroATX主板，支持VGA/LVDS雙顯, 10 COM口, 千兆網口
| AIMB-562L-KSA1E | ||
| Form Factor | Form Factor | Micro ATX |
| Processor System | CPU | Intel Core 2 Duo E7400 / Pentium Daul-Core E2200 / Pentium 4 651/ Celeron 440 |
| CPU TDP | 86W / 65W | |
| Frequency | 2.0GHz ~ 3.4GHz | |
| Core Number | 1 ~ 2 | |
| L2 Cache | 512KB ~ 4MB | |
| BIOS | Award 16Mbit | |
| Chipset | Intel Q945GC + ICH7 | |
| Memory | Technology | DDR2 533/667 MHz |
| Max. Capacity | 4 GB | |
| ECC Support | No | |
| Socket | 2 x 240-pin DIMM | |
| Display | Controller | Intel Chipset integrated VGA controller (GMA 950) |
| Graphic Engine | DirectX 9 and Open GL 1.4 supported | |
| Graphic Memory | Share with system memory up to 224 MB | |
| VGA | 1 x VGA | |
| LCD (TTL/LVDS/eDP) | ||
| Multiple Display | ||
| Expansion Interface | PCI Express x 1 | 1 |
| PCI | 2 | |
| Ethernet | Controller | GbE1: RTL8111C |
| Speed | 10/ 100/ 1000 Mbps | |
| Connector | RJ45 x 1 | |
| Audio | Audio Interface | HD Audio |
| CODEC | Realtek ALC888 | |
| Connector | 2 (Line out, Mic-in) | |
| Watchdog Timer | WatchDog Timer | Yes |
| Storage | SATA | 2 x SATAII (Max. Data Transfer Rate 300 MB/s) |
| IDE | 1 | |
| I/O | USB2.0 | 8 |
| GPIO | 16-bit GPIO | |
| LPT | 1 | |
| COM Port | 2 ( 2 x RS232) | |
| PS/2 KB/Mouse | 1 | |
| Power | Power Type | ATX |
| Connector | ATX24P | |
| Power Consumption (Full Load) | 4A @ 5V / 1.02A @ 3.3V / 2.35A @ 12V / 0.26A @ 5Vsb / 0.12A @ -12V | |
| Battery | Lithium 3 V / 200 mAh | |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Non-Operational Temperature | -20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing | |
| Vibration Resistance | 3.5 Grm (Non-Operation Mode) | |
| Physical Characteristics | Dimensions (L x W x H) | 244 x 244 mm |
| Weight | 1.2 kg (2.64 lb), weight of total package | |
| Operating System | Microsoft Windows | Yes |
| Linux | Yes | |
| SUSIAccess | Yes | |
| Certification | EMC | CE, FCC |
